Day Night Detection Sensor FX101 220VAC 10A LDR sensor Photo Cell for Street Road light automatic on off

 Day Night Detection Sensor FX101 220VAC 10A LDR sensor Photo Cell for Street Road light automatic on off Relay switching

Specifications, Features and Applications:

220-240VAC 50-60Hz

10 Amp

IP44 Waterproof

LUX Sensitivity control

<10-100Lux-ON

<40-250Lux-OFF

Mountings and Screws

-20℃ to +45℃

<93%RH Humidity

Street, highways road lighting, park, factory, garden, ports, airports,farm, schools, home lighting automatic control

Day night sensing Device LDR Sensor Photo cell sensor

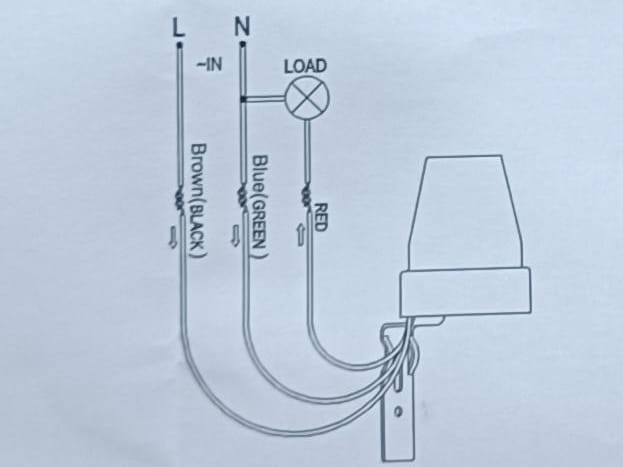

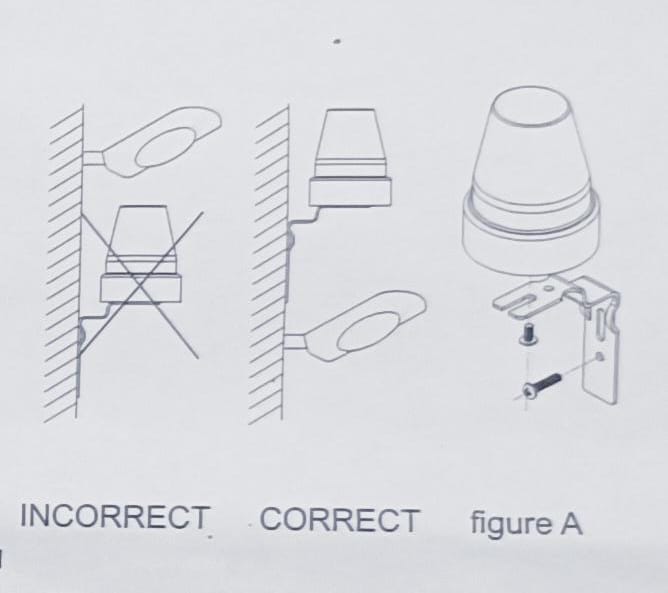

Connection wiring and installation:

Contact: +91 88600-55120

A day night detection sensor, also known as a photocell, is a device that uses a light-sensitive resistor to detect the presence or absence of light. These sensors are often used in outdoor lighting systems to turn lights on at night and off during the day. They can also be used in other applications where it is important to detect the presence or absence of light, such as in security systems or automatic door openers.

One common type of day night detection sensor is a 220 volt AC photocell with a 10 ampere rating. These sensors are designed to operate on a standard 220 volt AC electrical circuit and can handle up to 10 amperes of current. This makes them suitable for use with a wide range of lighting systems and other equipment.

To use a 220 volt AC photocell with a 10 ampere rating, you will need to wire it into your electrical circuit. This can typically be done by connecting the sensor to the load side of the circuit, using appropriate wire connectors and wire size for the current rating of the sensor. Once the sensor is installed, it will automatically turn the lights on at night and off during the day, depending on the level of ambient light.

In addition to their use in outdoor lighting systems, day night detection sensors can also be used in other applications where it is important to detect the presence or absence of light. For example, they can be used in security systems to turn on floodlights or alarms when motion is detected in a certain area. They can also be used in automatic door openers to open doors when someone approaches and close them again when the area is empty.

Overall, day night detection sensors are a useful and convenient way to automatically control the lighting in a variety of applications. Whether you need to turn lights on and off in an outdoor area or detect the presence of light in a security system, a 220 volt AC photocell with a 10 ampere rating can be a reliable and effective solution.
